Metal-Dielectric Bandpass Filter

This filter transmits a fairly narrow band of wavelengths centered at 870 nm.

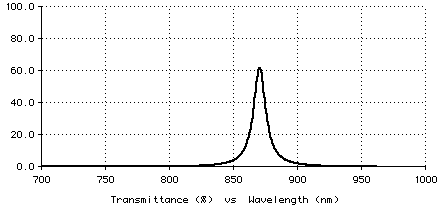

Plot of metal-dielectric design

This design is for normal incidence on a BK7 (ordinary) glass substrate. Three materials are used: Au, SiO2, and TiO2. Starting with a thin, one-layer design, TFCalc’s needle/tunneling method produced a sequence of designs of increasing complexity. The design (whose performance is shown above) consists of 8 layers. Designs with as few as 4 layers are possible. However, those designs have lower transmittance and a wider pass band.
Here is the design, with the first layer closest to the substrate and thickness given in nm:

    AU        23.33
    SIO2     121.94
    TIO2      94.24
    SIO2     302.57
    TIO2      94.24
    SIO2     127.87
    AU        24.97
    TIO2     101.94
